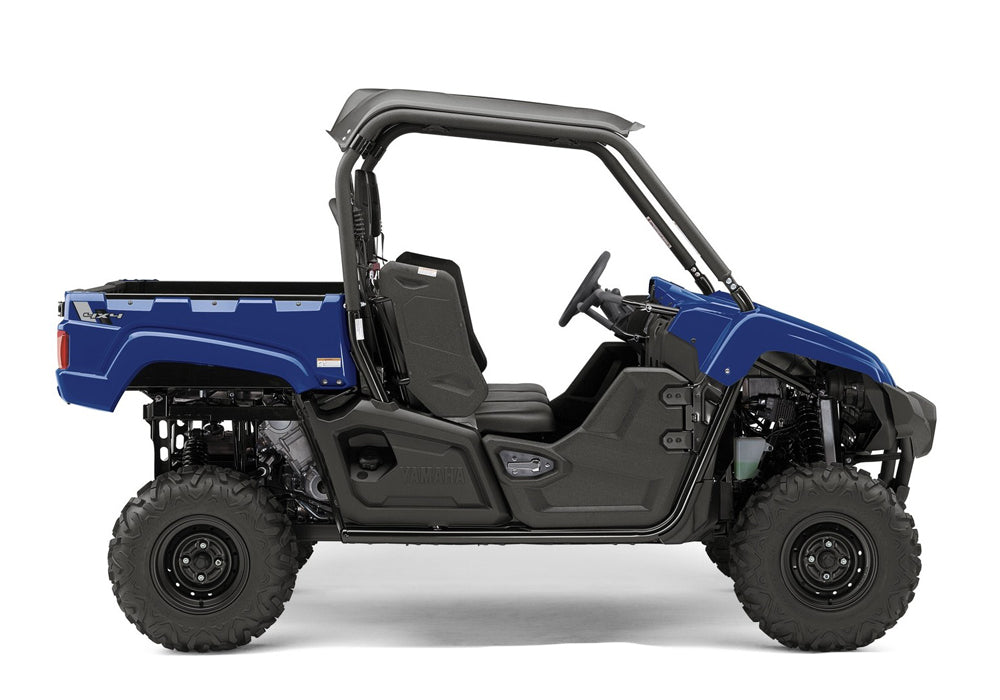

Viking

$22,799.00
This product is unavailable

Apply For Finance

APPLY
Description

Viking offers workplace solutions – you need to access remote areas with two colleagues? Viking is your best option. Viking is equipped with our unique Ultramatic On Command drive system with 2WD, 4WD and 4WD Diff Lock and downhill engine braking plus a torquey engine.

Viking enhancements include automotive-style two-stage door latches and a parking brake warning buzzer. Noise and vibration reduction features include new rubber damper plates, a more rigid chassis, additional sound dampening materials and an engine-mounted torque rod for a more relaxing ride at any engine RPM. A reinforced rear steel cargo bed now incorporates mounting points on the bed rails and a rubber cargo bed mat further reduces sound and vibration.

Technical Specifications

Engine Type Liquid-cooled, 4-stroke, SOHC, 4 valve, single cylinder

Displacement (cc) 686.0

Bore x Stroke (mm) 102.0 x 84.0

Compression Ratio 10.0 : 1

Lubrication System Wet Sump

Fuel Management Fuel Injection

Ignition TCI

Starter System Electric

Fuel Tank Capacity (L) 36.7

Final Transmission Shaft

Transmission Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P

Frame Type Steel tube

Suspension Front Independent double wishbone, 205mm travel

Suspension Rear Independent double wishbone, 205mm travel

Brakes Front Hydraulic dual discs

Brakes Rear Hydraulic dual discs

Tyres Front 25 × 8-12NHS

Tyres Rear25 × 10-12NHS

Length (mm) 3100

Width (mm) 1570

Height (mm) 1925

Seat Height (mm) 793

Wheelbase (mm) 2135

Ground Clearance (mm) 300

Wet Weight (kg)649

Finance Calculator
Calculator placeholder



General Info + Privacy Policy



Spacious 3-Seat Layout

This true 3-passenger machine achieves driver and passenger comfort with a handhold, padded head rests, and 3-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth a quiet ride. The superior seating position, adjustable driver's seat, a standard sun top and an offset middle seat all provide unmatched comfort that riders will appreciate.
